The Smart Ice 60 watt laser is one of the highest powered class IV lasers on the market at 60 watts. It is also priced at nearly half the cost of some comparable models. Many of the high powered lasers on the market are limited to one 980nm wavelength in a pulsed duration. This is optimal for pain reduction, but less optimal for healing tissues.
The unique four wavelength design of the Smart Ice 60w permeates variable tissue depths with exceptional efficiency. The pulsed wave option is excellent for pain modulation in the 980m range. The continuous wave option works best for metabolic activity and tissue healing in the 810nm range.

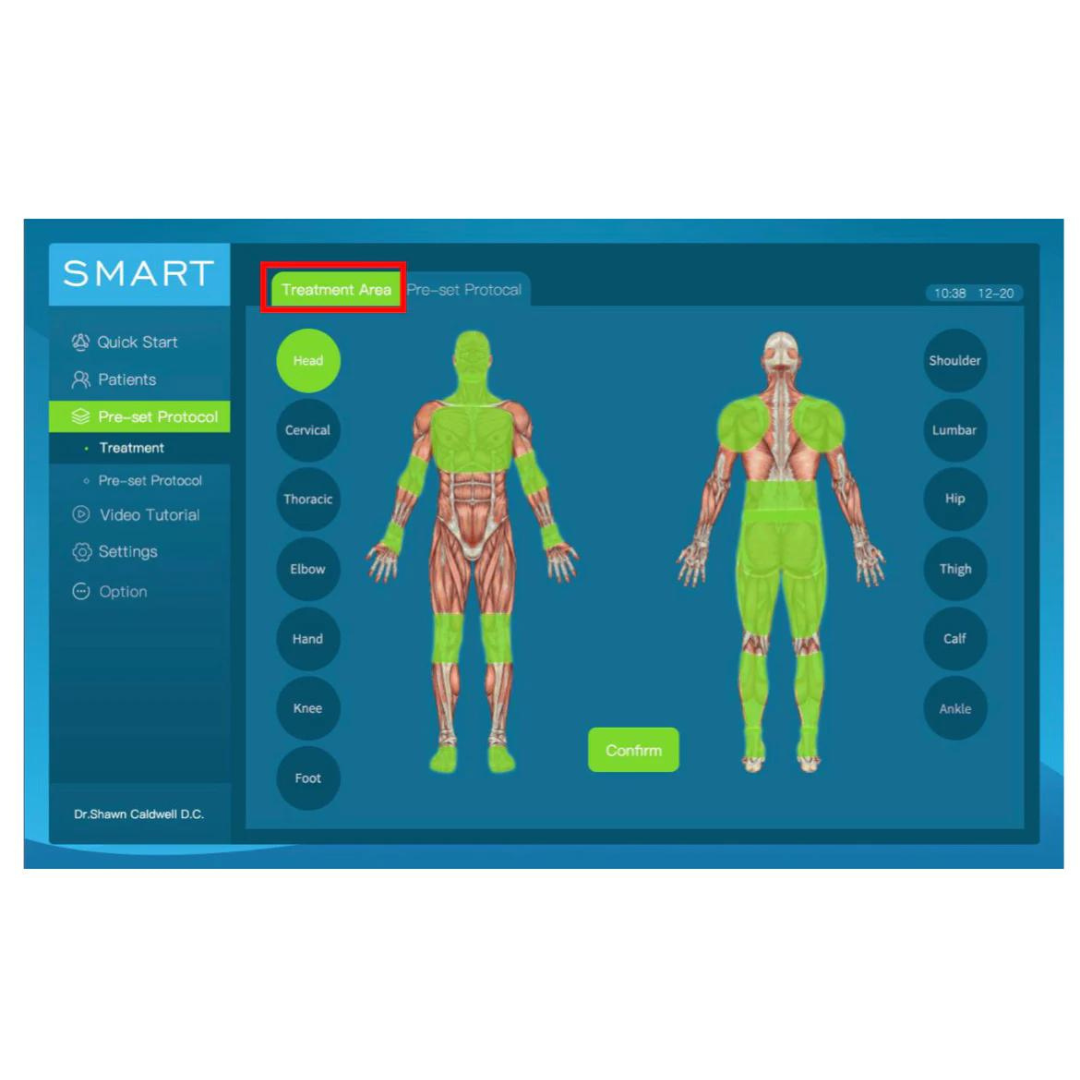

The Smart Ice 60w offers modes with alternating continuous and pulsed waves to optimize analgesia and cellular activity. Pulsed waves allow for faster delivery of energy without over-heating the tissue. Fully continuous, or pulsed modes are also available for provider preference. In addition to fully customizable settings, the Smart Ice 60w includes regional presets for tissue depth, skin color, and body size. All settings can be modified to specific treatment times and patient tolerance.
810nm INFRARED WAVELENGTH
The 810nm wavelength (at 8W) reaches deeper tissues and facilitates ATP conversion by maximizing oxygen saturation.
980nm INFRARED WAVELENGTH
The 980nm wavelength produces a deep thermal reaction to facilitate water and oxygen exchange. This aids in cellular metabolic processes and waste removal.
Working Mode: Continuous Wave (CW), Repeat Pulse, or Blended
Pulsing capabilities at 4 - 5000 Hz for higher dosages and shorter treatment times
Smart Ice Systems Specs
|
|

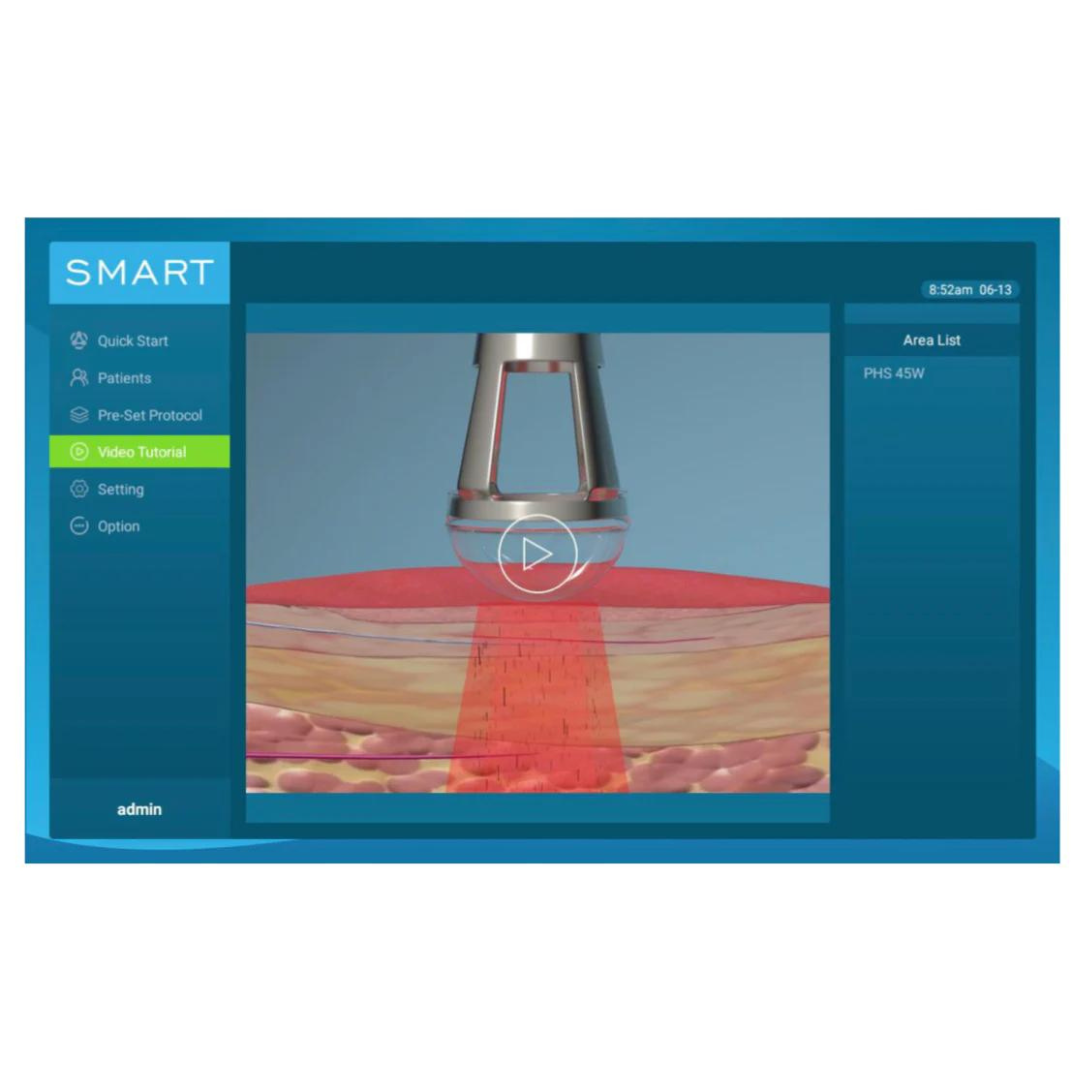

Touch Screen | 9-inch full color |
Internal Library | Searchable by condition |
Custom Protocols | Yes |
Warranty | 2 Years |
Included Accessories | Case, Safety Goggles (2 pairs), Therapy Handpiece, and full documentation |
Options | Portable Cart |
System Controller | |
Weight | 9 lbs / 4 Kg |
Dimensions | 7.5” (W) X 7.6” (L) X 11”(H) |
Operating Voltage | 110/220 VAC, 5A, 50/60 Hz |
Emitter
|
|
Laser Peak Power | 60W (60,000mw) |
Laser Class | 4 |
Fiber Optic Connection | 400 microns with a SMA905 connectors |
Operating Parameters | |
Laser | 808nm and 980nm |
Emitter | GaAlAs Diode Laser |
Operating Mode | Continuous Wave (CW), Pulsing (Frequency) Single, or Repeat Variable Pulse |
Pulse Duration | 10µs-3s |
Repetition Rate | 0.2Hz-20KHz |
Spot Size: | 10mm+30mm |
FDA registered | Lotuxs |
Model | Q45 | D60 |
Power & Wavelength |
45 W Combined Max Output |
60 W Combined Max Output 30 W @ 810nm 30 W @ 980nm |
Typical Dosage | 13,500 joules in 5 minutes | 18,000 joules in 5 minutes |
